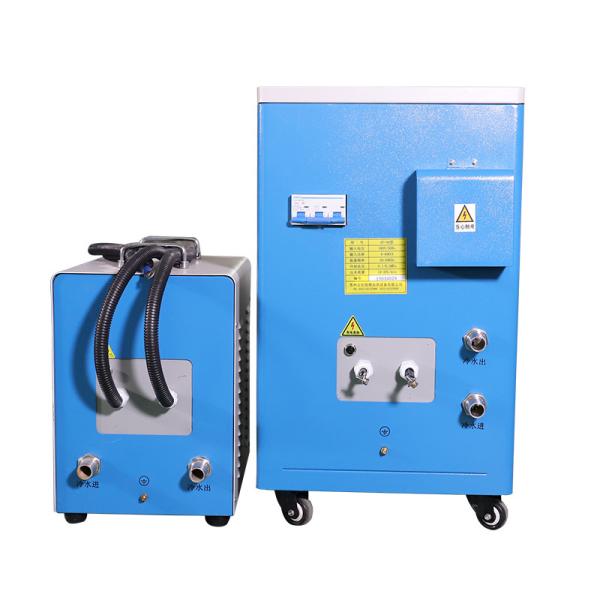

40kw Industrial Induction Heating Equipment For Brazing , Heat Penetration
Brazing machine descriptions:
1. Simple machine, clear operation panel; comprehensive protection, easy sensor replacement, easy to operate; the IGBT is used as the main device and the full-bridge inverter has high efficiency; 100% duty cycle design for continuous operation. The protection function is perfect.
2. High reliability, it can remotely control and match infrared temperature measurement to realize automatic temperature control, improve heating quality and simplify worker operation. Replace the oxy-acetylene flame, coke oven, salt bath furnace, gas furnace, oil furnace and other heating methods. It adopts automatic frequency tracking and multi-channel closed-loop control. It is small in size, light in weight, simple in installation and easy to operate.
Technical parameters of brazing machine:
| Item Model | GP-40 |
| Output | Rated Output Power(KW) | 25 |
| Max Output Power(KW) | 40 |
| Duty Cycle | 100% |
| Output Power Adjustment Range | 5~100% |
| Frequency Range(KHz) | 10~55 |
| Input | Input Voltage(V) | 3×380 |
| Frequency (Hz) | 50 |
| Cooling | Min Flow of Cooling Water(L/Min) | 10 |
| The Max Temperature of Cooling Water Inlet | Max35℃ |
| Min/max Cooling Water Pressure(MPa) | 0.1-0.3 |
| PH of Cooling Water Quality | 7.0~9.0 |
| Other | Environment Temperature | +5℃~+40℃ |
| Dimension(L×W×H) | Main Extension Size | 600×400×620 |
| 410×285×380 |
Features of brazing machine:
1. It adopts the most advanced MOS, IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.
4. A maximum ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
6. The comprehensive full load design is available for 24-hour continuous operation.
7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Our Services about induction heating machine:
1. Reply your inquiry within 12 working hours.
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price with high quality,compare with the same industry.
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need.
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10. If you need, will arrange one engineer to your place, instruct install machine and training operators.
11.Excess warranty period (12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support, supply whole life after sell service.
Applications:
