Surface Quenching 30KW High Frequency Induction Hardening Machine
Equipment characteristics for high frequency induction heating machine:
1. Adopted with MOSFET, IGBT power device and variable frequency control, high frequency induction machines enjoy high efficiency, energy saving and larger output power.
2. With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
3. Saving double electricity more than traditional high frequency induction heating device under the same conditions.
4. With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
5. With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
6. The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.
Technical parameters of quenching machine:
| Item Model | GP-30 |
| Rated Voltage(V) | 380V/50Hz |
| Input Power(kVA) | 2~30 |
| Input Oscillation Frequency(kHz) | 30~100 |
| Load Duration | 100% |
| Cooling Water Pressure(Mpa) | 0.1~0.3 |
| Output Water Flow(L/Min) | 5~15 |
Why choose Hongchuang induction quenching equipment?
1. The heat source is on the surface of the workpiece, fast heating speed, high thermal efficiency, small deformation, less amount of decarburization.
2. The surface hardness of the workpiece is high, the notch sensitivity is small, and the impact toughness, fatigue strength and wear resistance are greatly improved.
3. It can be used not only in surface quenching but also in penetration heating and chemical heat treatment.
4. Hongchuang Gear and Shaft quenching machine has the function of continuous quenching, simultaneous quenching, continuous quenching in sections, simultaneous quenching in sections.
5. Variable frequency speed control system, servo motor drive, ball screw drive.
6. Both two cooling methods immersion and spraying are available for the equipment , it can be equipped with the integrated quenching liquid circulating cooling system.
7. Adopts CNC system and PLC touch screen to control the equipment, the equipment is without programming, convenient operation, real-time display, can store 126 programs, concentrate heating→ positioning→ spraying and time controlling on the control system of machine, easy positioning and scanning, and connect with induction generator through PLC , realize automatic production.
8. High resetting precision, small volume, light weight, easy maintenance.
9. According to the needs of the customer, a semi automatic or fully automatic high frequency quenching machine equipment can be customized.

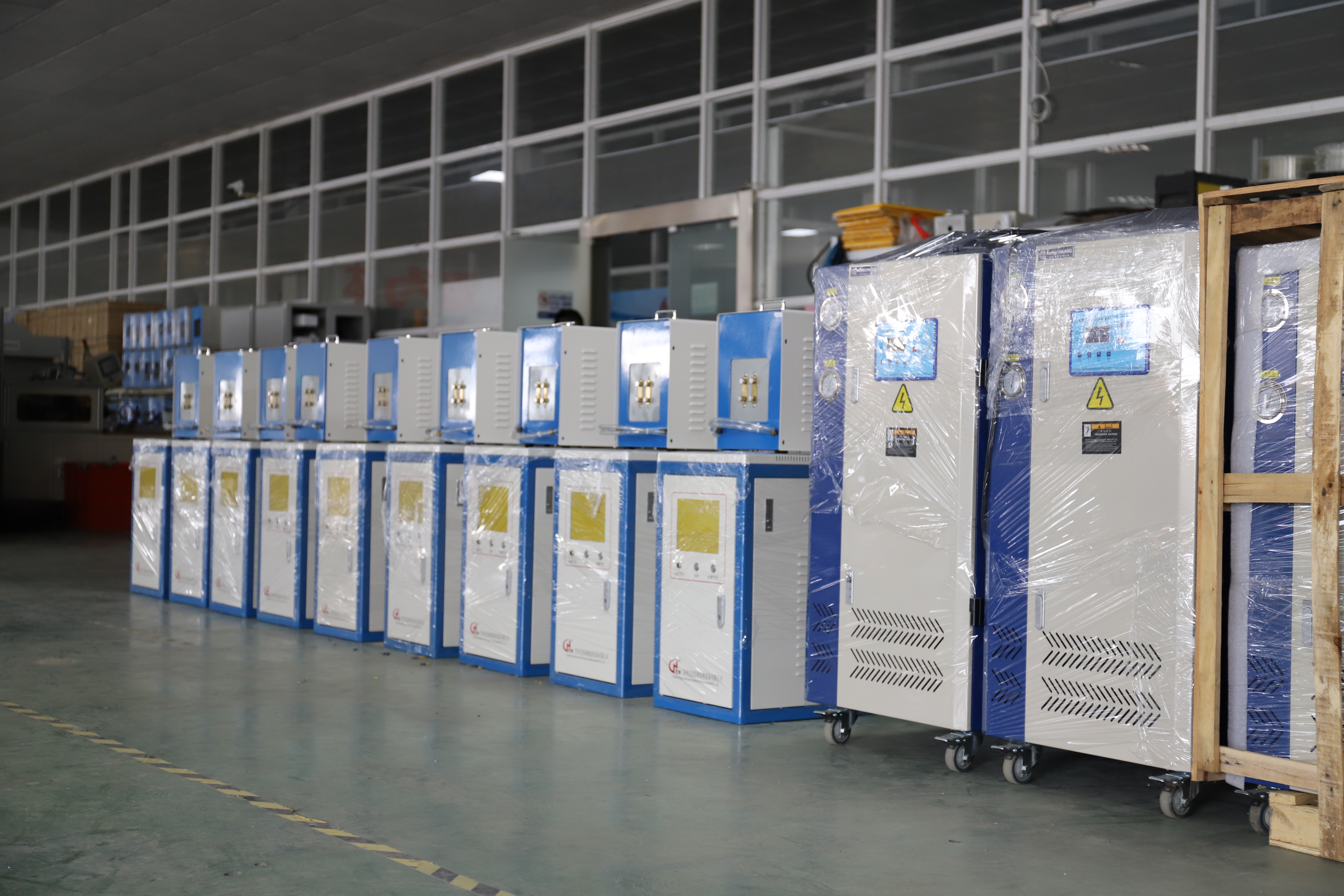

Delivery about induction heating machine:
