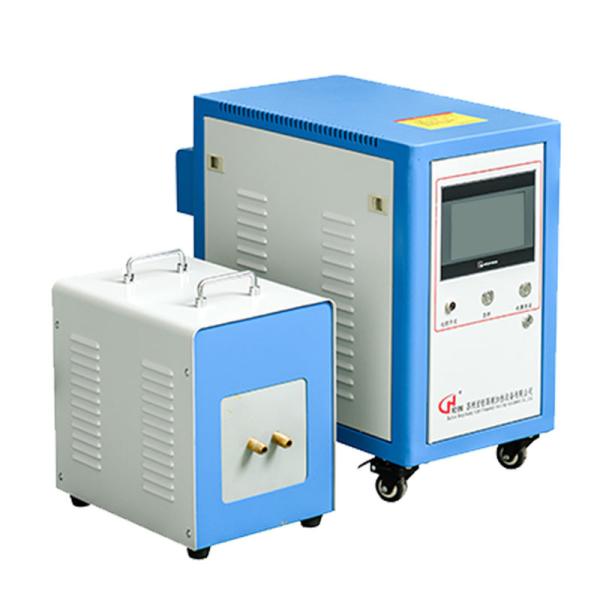

30kw PLC Touch Screen Induction Quenching Machine Small High-Frequency
Descriptions of induction brazing machine:
1) using the well-known international company Mosfet/IGBT power devices and unique inverter technology, 100% duty cycle design, 24-hour operation at maximum power, high reliability assurance.
2) self-controlled adjustable heating time, heating power, holding time, holding power and cooling time; greatly improve the quality and repeatability of heating heating products, to simplify the operation of technical workers.
3) light weight, small size, simple installation [a few minutes to complete].
4) simple, few minutes to learn.
5) Special Security, the output voltage is below 36V, remove the high voltage electric shock.
6) the heating efficiency up to 95%, energy consumption is only 20% -30% of the old-fashioned tube, almost no electricity in standby mode, and 24 hours of continuous work.
7) the sensor can be freely removable quick replacement, ultra-fast heating significantly reduced the oxidation of the workpiece deformation.
8) substituted oxygen, acetylene, coal and other dangerous items heated latest environmentally friendly products, no open flame to produce more safe and secure.
9) the device has over-current, over voltage, over temperature, water shortages, lack of equal perfect automatic protection function, and is equipped with self-diagnostic alarm system.
10) the apparatus includes a constant current and constant power control function, greatly optimize the process of heating the metal to achieve efficient, rapid heating, the superiority of the product can be fully realized.
Technical parameters of induction heating machine:
| Technical parameters |
| Item | Model | DIH-30 | DIH-40 | DIH-50 | DIH-60 |
| Out Put | Rated output power | 18 | 25 | 35 | 45 |
| Max output power | 30 | 40 | 50 | 60 |
| Duty Cycle | 100% | 100% | 100% | 100% |
| Out Put | Output Power Adjust Range | 5-100% | 5-100% | 5-100% | 5-100% |
| Frequency Range | 10~55 | 10~55 | 10~55 | 10~55 |
| In Put | Input Voltage | 3*380 | 3*380 | 3*380 | 3*380 |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| | | | | |
| Cooling | Min Flow of Cooling Water | 10L/Min | 10L/Min | 15L/Min | 15L/Min |
| The Maxi Temp of Cooling Water Inlet | Max.35℃ | Max.35℃ | Max.35℃ | Max.35℃ |
| Min/max Cooling Water pressure | 0.1-0.3 MPa | 0.1-0.3 MPa | 0.1-0.3 MPa | 0.1-0.3 MPa |
| pH of Cooling Water Quality | 7.0~9.0 | 7.0~9.0 | 7.0~9.0 | 7.0~9.0 |
| Other | Environment Temp | +5℃~+40℃ | +5℃~+40℃ | +5℃~+40℃ | +5℃~+40℃ |
| OD(L*W*H) | Main body size(mm) | 550*320*500 | 600*400*620 | 680*420*725 | 600*420*700 |
| Extension Size(mm) | 360*262*330 | 410*285*380 | 470*304*390 | 470*304*390 |
Applications of Induction brazing machine:
1. welding/brazing for carbide saw blade tooth;
2. welding/brazing and annealing for spectacle frames and its spare parts;
3. welding/brazing/heating for jewelry & watches;
4. Electronics Industry: tin/silver/copper brazing/soldering for very small evenΦ0.1mm below wire and pieces of various electronic components;
5. Electromechanical industry: silver brazing for metal joints, quenching and tempering for micro motor & shaft;
6. Wire Industry: wire strip annealing;
7. Welding tools, cutter, hardening for shoe mouth & blade;
8. Toy Industry: winding thin metal sheet tempering.
Delivery :
| Delivery |
| | By sea, by air, by truck or by express courier etc as customers requested |
| | Packing list, commercial invoice, Bill of Loading, Original Certificat will be offered free of charge. |
